Hunan Tianying Drilling Machine Manufacturing Co., Ltd. Tricone Drill Bit
7 Years
| Ask Lasest Price | |
| Brand Name : | Tianying |
| Model Number : | 9 7/8”IADC725 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000 Pcs Per Month |
| Delivery Time : | 10-15 Working Days |

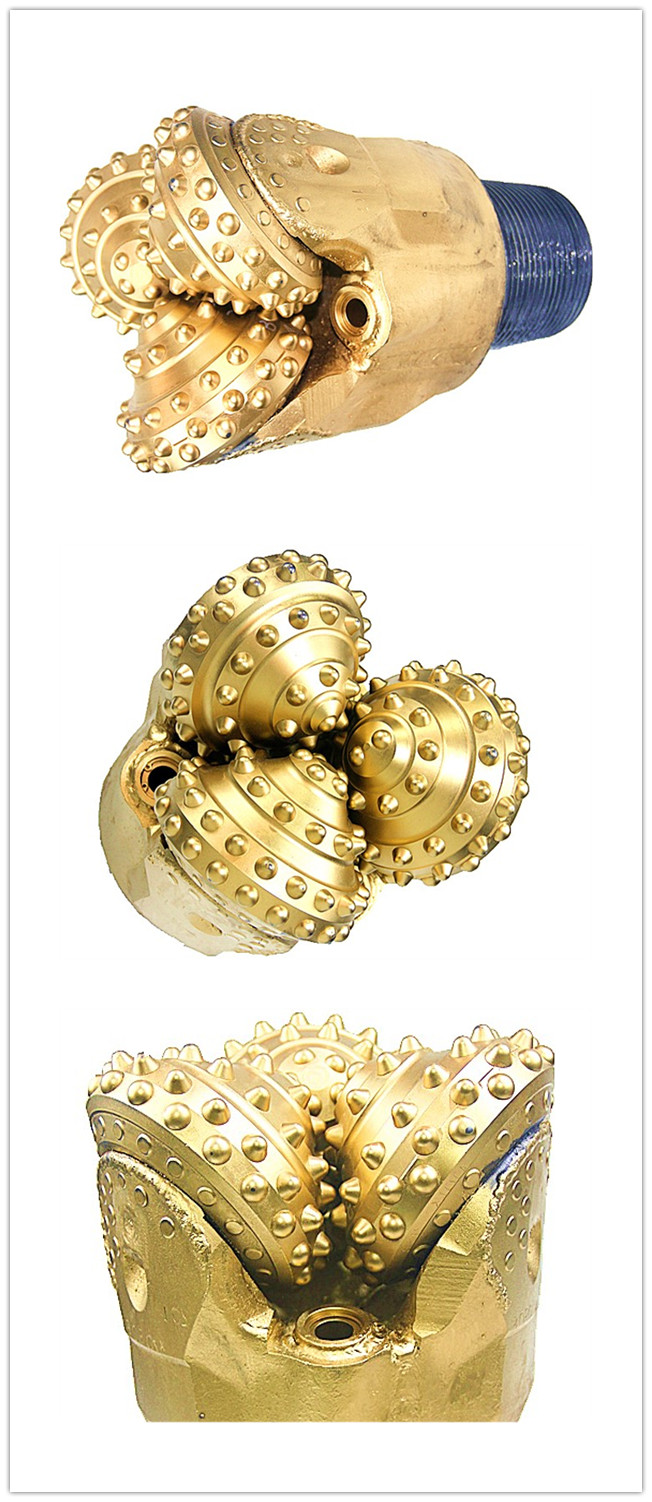

Wear Proof Tricone Drill Bit For Hard Rock Drilling Blast Hole
Click here for catalogueTCI DRILL BIT.pdf
Our Company
Hunan TianYing Drilling Machine Manufacturing Co., Ltd. was founded in 2003, located at Zhuzhou, China, the word famous tungsten Carbide production base. We are a professional producer, and supplier of Rock Drilling Bits, all the bits crafted from the finest material available in today's market.TCI(Tungsten Carbide Insert) types are our main products, available in many sizes, designed for soft to very hard formations. With years of study and refining, our Rock Drilling Bits are preceded by extensive R&D, field tested, and backed by our unmatched commitment to service and support, our products exported to all over the world, such as Australia, North America, Middle East, North Africa and Southeast Asia etc. Today, Tianying's products have been favored and respected by domestic and foreign customers. We will continue to serve our customers with high quality products, excellent service and reasonable price.
All of our bits are manufactured according to strict standards, set forth by the American Petroleum Institute (API). And classified according to characteristics set forth by the International Association of Drilling Contractors (IADC).
What Is Tricone Drill Bit?
Tricone Drill Bit is drilling method that uses a roller bits. In roller-bit drilling, rock is cut by hard-alloy teeth projecting from rolling cutters, which rotate on the drill-bit bearings. Inturn, the drill bit rotates at a high rate, and presses against the bottom hole with a high axial force. The teeth of the rolling cutters roll over the bottom hole and, owing to the large stresses that develop in the area of contact between the teeth and the rock, cut the rock by crushing and chipping. As the hardness of therock increases, the rotation rate decreases and the axial force increases. Destroyed at the mine the rock is removed to the surface by air compressor, mud pump, or a combination of these methods.
Application:
Hard to Very-Hard Formation
For use in abrasive consolidated formations with compressive strength above 400 Mpa such as taconite, quartzite and banded iron formations
Cutting structure: These bits are characterized by closely spaced conical or spherical inserts with medium to low projection. This configuration promotes good penetration rates in hard, consolidated and very abrasive formations. Smaller carbide inserts are provided on the gage and inner rows or hard metal is deposited in the nose area to contain shell erosion and improve performance.
INTERRELATIONSHIP BETWEEN INSERTS REQUIREMENTS AND THE FORMATION
Formation Characteristics | Insert Spacing | Insert Properties | Penetration and Cuttings Production | Cleaning Flow Rate Requirement |
| Soft | Wide | Long and sharp | High | High |
| Medium | Relatively wide | Shorter and stubbier | Relatively high | Relatively high |
| Hard | Close | Short and rounded | Relatively low | Relatively lower |
Advantage:
High quality----strictly act according to the ISO9001 standard, and all bits are manufactured according to strict standards, set forth by the American Petroleum Institute (API).
Propessional Equipment---- No matter raw material selection, or processing technology are selected is the industry leading technical equipment.
16 Years History---- From 2003 to 2019, customers are located all over the world and win a good reputation.
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances.
|
|
