Hunan Tianying Drilling Machine Manufacturing Co., Ltd. Tricone Drill Bit
7 Years
| Ask Lasest Price | |
| Brand Name : | Tianying |
| Model Number : | 7 7/8" IADC545 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000 Pcs Per Month |
| Delivery Time : | 10-15 Working Days |

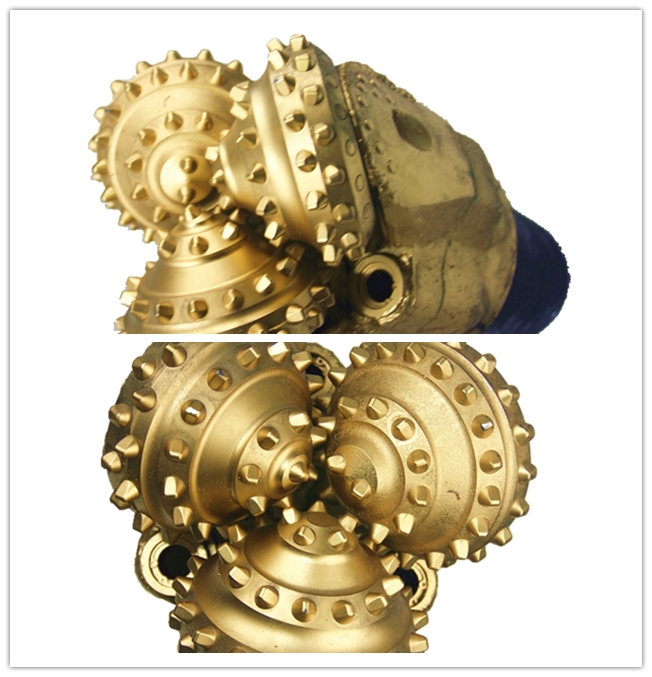

API Standards IADC545 Mining Drill Bits For Mining Industry With
Long Life
Click here for catalogueTCI DRILL
BIT.pdf
Our Company
Hunan TianYing Drilling Machine Manufacturing Co., Ltd. is a professional manufactory of Rock Drilling Bits. Our drilling bits manufacture are based on the extensive research and development in the field of mining. All the Rock Drilling Bits using the finest raw materials available, including Premium Steel and Tungsten Carbide. We ensure that our worldwide clients have quick access to our service, manufacturing and marketing expertise. Our vision is to become the industry's performance leader in tools that withstand the toughest rock drilling demands. That's why our products exceed industry specifications for performance and safety. When you work with TianYing, we are committed to your productivity and efficiency.
All of our bits are manufactured according to strict standards, set forth by the American Petroleum Institute (API). And classified according to characteristics set forth by the International Association of Drilling Contractors (IADC).
How to read an IADC Code properly ABOUT IADC.pdf
| First Digit | TOOTH |
| 1 | Steel tooth bits for Soft Formation |
| 2 | Steel tooth bits for Medium Formation |
| 3 | Steel tooth bits for Hard Formation |
| 4 | TUNGSTEN CARBIDE INSERT BITS For varying formation hardness with 4 being the softest and 8 the hardest. |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| Second Digit | FORMATION |
| 1 | 1,2,3 and 4 are further breakdown of formation with 1 being the softest and 4 the hardest. |
| 2 | |
| 3 | |
| 4 | |
| Third Digit | BEARING/SEAL TYPE |
| 1 | Standard open bearing roller bit |
| 2 | Standard open bearing roller bit, air-cooled |
| 3 | Standard open bearing roller bit with gauge protection |
| 4 | Sealed roller bearing bit |
| 5 | Sealed roller bearing bit with gauge protection |
| 6 | Journal sealed bearing bit |
| 7 | Journal sealed bearing bit with gauge protection |
| Fourth Digit | ADDITIONAL FEATURES |
| A | Air application |
| R | Reinforced welds |
| C | Center jet |
| S | Standard steel tooth |
| D | Deviation control |
| X | Chisel insert |
| E | Extended jet |
| Y | Conical Insert |
| G | Extra gage protection |
| Z | Other insert shape |
| J | Jet Deflection |
Advantage:
High quality----strictly act according to the ISO9001 standard, and all bits are manufactured according to strict standards, set forth by the American Petroleum Institute (API).
Propessional Equipment---- No matter raw material selection, or processing technology are selected is the industry leading technical equipment.
16 Years History---- From 2003 to 2019, customers are located all over the world and win a good reputation.
Quality Control
In manufacturing, each process goes through an extensive and painstaking testing ,
quality control is a process that ensures customers receive products free from defects and meet their needs.
1, Raw material selection:To make a good drill bit, it is necessary to select the best material and gatekeeping the quality of the material. We purchase the high-quality steel and strictly control the material composition and size, it main includes the detection of the shape, diameter, reamed diameter, length composition, and flaw of the raw material, Tungsten Carbide and Grease are also the best raw materials on the market.Besides, we marked every different piece of materials before transferred to the warehouse.
2, In strict accordance with the ISO9001 international standards for production.
Carefully control every step of the production, complete each of the production process,
the production process is including blanking, forging, rough turning, heat treatment,fine turning, quenching, assembling, welding, painting, then storage.
Each working process was full inspected, after the qualification, then move to next working process, which to ensure the 100% qualified rate.
3, Sampling observation, numbered, packing and arrange the shipment.
Tianying's Best Service
1. 365×24 Year-round Service,We are committed to year-round 24-hour service even during holidays.
1. Provide professional technical services, including products introduction, selecting and problem solution etc.
3. Within 35 Working Days Quick Delivery.
|
|
