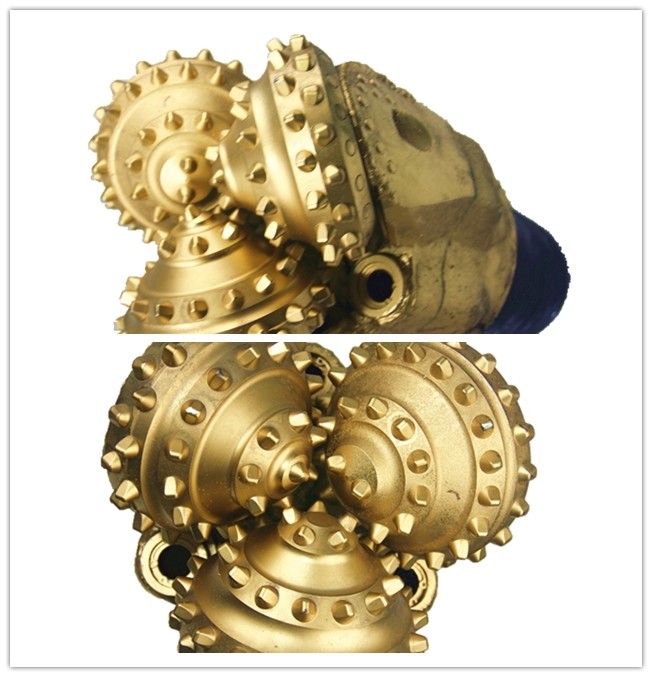

Various Sizes Are Available Mining Drill Bits For Medium Soft Formations

Click here for catalogueTCI DRILL BIT.pdf

What is Mining Drill Bit?

1. Suitable for soft to extremely hard and abrasive formations.
2. High temperature heat treatment forged alloy steel.
3. Specifically designed tungsten carbide insert.
4. Advanced synthetic grease improves bearing lubrication and reliability.
5. Sealed bearing can improves bearing life for longer drilling time and more footage drilled.
6. Tungsten carbide pucks added on the shirttail to protect against abrasive applications.
7. Thread protected to prevent it damaged during transportation.

AIDC5** Series Mining Drilling Bits Application

Soft to Medium-Soft Formation

Application: For use in less abrasive softer formations with compressive strength ranging up to 140 Mpa, such as shales, limestones, carbonates and most metamorphic formations.

Cutting structure: These bits are characterized by large diameter, widely spaced chisel or sharp conical inserts with high projection. This configuration promotes maximum penetration rates in softer formations. Smaller carbide inserts are provided on the gage and inner rows to contain shell erosion and improve performance.

• Compression Strength: 15,000-25,000 psi
• Drilling Speeds: 80 – 110 rpm
• Jet Circulation: All sizes
• Weight on Bit (WOB): 2,000 – 5,000 lbs/in of bit diameter

INTERRELATIONSHIP BETWEEN INSERTS REQUIREMENTS AND THE FORMATION

Advantage:

1. Suitable for soft to extremely hard and abrasive formations.
2. High temperature heat treatment forged alloy steel.
3. Specifically designed tungsten carbide insert.
4. Advanced synthetic grease improves bearing lubrication and reliability.
5. Sealed bearing can improves bearing life for longer drilling time and more footage drilled.
6. Tungsten carbide pucks added on the shirttail to protect against abrasive applications.
7. Thread protected to prevent it damaged during transportation.

Quality Control

In manufacturing, each process goes through an extensive and painstaking testing ,

quality control is a process that ensures customers receive products free from defects and meet their needs.

1, Raw material selection:To make a good drill bit, it is necessary to select the best material and gatekeeping the quality of the material. We purchase the high-quality steel and strictly control the material composition and size, it main includes the detection of the shape, diameter, reamed diameter, length composition, and flaw of the raw material, Tungsten Carbide and Grease are also the best raw materials on the market.Besides, we marked every different piece of materials before transferred to the warehouse.

2, In strict accordance with the ISO9001 international standards for production.

Carefully control every step of the production, complete each of the production process,

the production process is including blanking, forging, rough turning, heat treatment,fine turning, quenching, assembling, welding, painting, then storage.

Each working process was full inspected, after the qualification, then move to next working process, which to ensure the 100% qualified rate.

3, Sampling observation, numbered, packing and arrange the shipment.

Tianying's Best Service

1. 365×24 Year-round Service,We are committed to year-round 24-hour service even during holidays.

1. Provide professional technical services, including products introduction, selecting and problem solution etc.

3. Within 35 Working Days Quick Delivery.

    Professional. Duarable, Efficient, TIANYING TCI Tricone Bit!
    Hunan Tianying Drilling Machine Manufacturing Co., Ltd.is one state-appointed factory of mining tools especially for tricone bit. we are established in 1958 and located at Zhuzhou city of Hunan provice. one famous heavy industrial base of China. covering the land area of more than 800 acres with total asset of RMB130 Million and over 100 staffs.

    we have advanced full-equipped tricone bits and rockdrilling tillsmanufacturing workshops, high frequency welding workshop.heat treatment workship. mould equipment making workshop and the various departments of measurement. quality control. technology R&D center. the tatal main equipments amount to over 300 sets andthe annual production volume for tricone bits is 5000pcs for other rock drilling tools is over 1400000 pieces.

    we have partners all over the world like America. Europe.Australia.South Africa. UAE. Brazil and so on.
