Hunan Tianying Drilling Machine Manufacturing Co., Ltd. Tricone Drill Bit
7 Years
| Ask Lasest Price | |
| Brand Name : | Tianying |
| Model Number : | IADC745 |
| Certification : | ISO9001 |
| Price : | USD 1000-1500 PER SETS |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000 SETS PER MONTH |
| Delivery Time : | 35-45 WORKING DAYS |
Withstand Wear And Tear Roller Cone Bit For Blast Hole Drilling And Mining
Click here for catalogueTCI DRILL BIT.pdf
Description of drill bit
IADC 7 SERIES DRILL BITS
The medium hard formation TCI tricone bits features robust chisel tungsten carbide inserts on the heel row and conical on the inner rows.
This design provides a fast drilling rate and added cutting structure durability in medium to medium hard formations.
The HSN rubber O-ring provides adequate sealing for bearing durability.

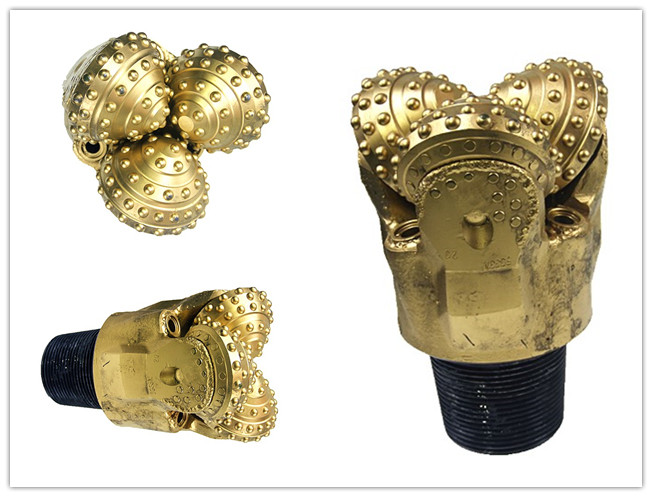

Roller cone bit consists of a bit body with three moveable conical rollers equipped with cemented carbide inserts.
The idea is the crush the rock by rolling the inserts against the rock with appropriate rotation speed and feed force.
Three types of cemented carbide inserts are used for roller type bits being Chisel, Conical, and Hemispherical.
Carbide inserts are distributed over the three rollers in such a manner that the entire bottom of the hole is worked on when the drill bit is rotated. Roller bits for hard and abrasive rock generally have spherical cemented carbide inserts closely spaced.
Roller bits for softer rock may have the chisel and conical carbide teeth or quality milled steel teeth as the cutters.
A roller bit will utilize nozzles from which the compressed air escapes to lift the cuttings from the bottom of the hole.
All bits the above are manufactured according to strict standards, set forth by the American Petroleum Institute (API).
And classified according to characteristics set forth by the International Association of Drilling Contractors (IADC).
How to read an IADC Code properlyHow To Read IADC 1.pdf
| First Digit | TOOTH |
| 1 | Steel tooth bits for Soft Formation |
| 2 | Steel tooth bits for Medium Formation |
| 3 | Steel tooth bits for Hard Formation |
| 4 | TUNGSTEN CARBIDE INSERT BITS For varying formation hardness with 4 being the softest and 8 the hardest. |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| Second Digit | FORMATION |
| 1 | 1,2,3 and 4 are further breakdown of formation with 1 being the softest and 4 the hardest. |
| 2 | |
| 3 | |
| 4 | |
| Third Digit | BEARING/SEAL TYPE |
| 1 | Standard open bearing roller bit |
| 2 | Standard open bearing roller bit, air-cooled |
| 3 | Standard open bearing roller bit with gauge protection |
| 4 | Sealed roller bearing bit |
| 5 | Sealed roller bearing bit with gauge protection |
| 6 | Journal sealed bearing bit |
| 7 | Journal sealed bearing bit with gauge protection |
| Fourth Digit | ADDITIONAL FEATURES |
| A | Air application |
| R | Reinforced welds |
| C | Center jet |
| S | Standard steel tooth |
| D | Deviation control |
| X | Chisel insert |
| E | Extended jet |
| Y | Conical Insert |
| G | Extra gage protection |
| Z | Other insert shape |
| J | Jet Deflection |
Main Products We Provide
We mainly provide Tricone Bits(TCI Drill Bits) for open pit mining.
a). Type: Tungsten Carbide Insert (TCI)
b). Formation Application: Soft to Hard Formation
c). Size Available: 7 7/8''~26''
d). Popular IADC Code: IADC545,645,725,735,745,825,835
Don’t see the bit you are looking for? Give us a call, we can customize any bit to fit your unique circumstances.
|
|
