Hunan Tianying Drilling Machine Manufacturing Co., Ltd. Tricone Drill Bit
7 Years
| Ask Lasest Price | |
| Brand Name : | Tianying |
| Model Number : | 7 7/8" IADC635 |
| Certification : | ISO9001 |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000 pcs per Month |
| Delivery Time : | 15-35 working days |

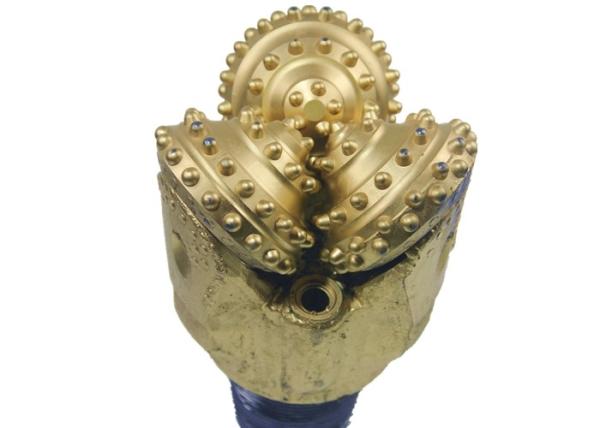

With API Thread Connection Hard Rock Drill Bits For Mining Industry
Working theory of TCI tricone bit
Tricone bit is connected with the drill stem and rotates along with it, and drive cones to pressed on the rock. Each cone rotates round the axis of its leg and three cones simultaneously revolve around the bit center. The tungsten carbide inserts on the cone shell cause the formation to spall under the weight on bit and the impact load of cone rotating, the debris will be discharged out to hole by compression air.
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
The medium formation TCI tricone bits features aggressive chisel tungsten carbide inserts on the heel rows and inner rows. This design provides a fast drilling rate and added cutting structure durability in medium to medium hard for mations. The HSN rubber O-ring provides adequate sealing for bearing durability.
Bits thread are manufactured according to API standards.
| BIT SIZE | BIT WEIGHT | THREAD TYPE(API) |
| 7 7/8” (200mm) | 36KG | 4 1/2” REG |
| 9 7/8” (251mm) | 67KG | 6 5/8” REG |
| 11” (280mm) | 76KG | 6 5/8” REG |
| 6 5/8” (311mm) | 100KG | 6 5/8” REG |
Advantage:
1. Strictly select the material to ensure the reliable quality. Bad steel and tungsten carbide inserts won't be used.
2. Strictly act according to the ISO9001 standard, and control by full-scale inspection.
3. Sales and support people are highly trained in the latest rock drilling technology and can offer you expert advice on what products will best fit a specific end use application.
Tianying's Best Service
1. 365×24 Year-round Service,We are committed to year-round 24-hour service even during holidays.
1. Provide professional technical services, including products introduction, selecting and problem solution etc.
3. Within 35 Working Days Quick Delivery.
Our Company
Hunan Tianying Drilling Machine Manufacturing Co., Ltd, supplies tricone drill bits, which are widely used in mining drill. Products offers a complete line of tricone bits, which using the best raw material in the market. Reliable steel, tungsten carbide, bearing and lubrication system, size from 7 7/8”(85.7mm) to 26”(660.4mm) for use in all formations, Our Tricone Bits are with Sealed Bearing, Roller Bearing and Gage Protected which can ensure you can drill more meters.
All bits the above are manufactured according to strict standards, set forth by the American Petroleum Institute (API). And classified according to characteristics set forth by the International Association of Drilling Contractors (IADC).
|
|
