Mining Use Roller Cone Drill Bit Offers An Expansive Range Of Dimensions

Click here for catalogueTCI DRILL BIT.pdf

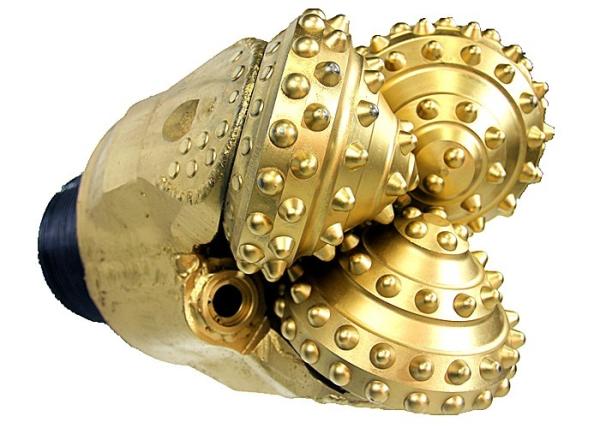

What is Roller Cone Drill Bit ?

Roller cone bit consists of a bit body with three moveable conical rollers equipped with cemented carbide inserts. The idea is the crush the rock by rolling the inserts against the rock with appropriate rotation speed and feed force. Three types of cemented carbide inserts are used for roller type bits being Chisel, Conical, and Hemispherical. Carbide inserts are distributed over the three rollers in such a manner that the entire bottom of the hole is worked on when the drill bit is rotated. Roller bits for hard and abrasive rock generally have spherical cemented carbide inserts closely spaced. Roller bits for softer rock may have the chisel and conical carbide teeth or quality milled steel teeth as the cutters. A roller bit will utilize nozzles from which the compressed air escapes to lift the cuttings from the bottom of the hole.

CUTTING SELECTION GUIDE

Advantage:

1. Suitable for soft to extremely hard and abrasive formations.
2. High temperature heat treatment forged alloy steel.
3. Specifically designed tungsten carbide insert.
4. Advanced synthetic grease improves bearing lubrication and reliability.
5. Sealed bearing can improves bearing life for longer drilling time and more footage drilled.
6. Tungsten carbide pucks added on the shirttail to protect against abrasive applications.
7. Thread protected to prevent it damaged during transportation.

The above represents commonly available sizes and types, we do produce other sizes and types of rock drill bits which do not appear on . Please contact us for more information.

    Professional. Duarable, Efficient, TIANYING TCI Tricone Bit!
    Hunan Tianying Drilling Machine Manufacturing Co., Ltd.is one state-appointed factory of mining tools especially for tricone bit. we are established in 1958 and located at Zhuzhou city of Hunan provice. one famous heavy industrial base of China. covering the land area of more than 800 acres with total asset of RMB130 Million and over 100 staffs.

    we have advanced full-equipped tricone bits and rockdrilling tillsmanufacturing workshops, high frequency welding workshop.heat treatment workship. mould equipment making workshop and the various departments of measurement. quality control. technology R&D center. the tatal main equipments amount to over 300 sets andthe annual production volume for tricone bits is 5000pcs for other rock drilling tools is over 1400000 pieces.

    we have partners all over the world like America. Europe.Australia.South Africa. UAE. Brazil and so on.
